COMMANDER IOC/RTU

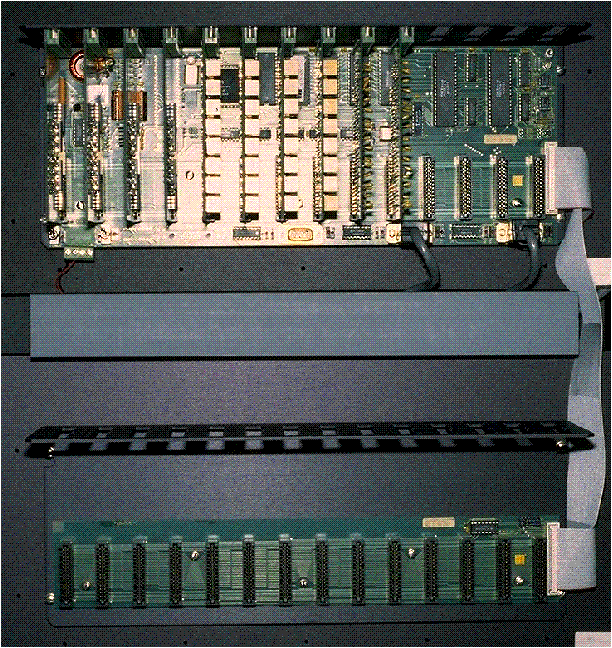

Look at picture of this assembly, shown with optional expansion boards.

The medium-size COMMANDER™ Cardfile RTU provides advanced telemetry and control functions for SCADA (Supervisory, Control, and Data Acquisition) systems.

Each unit is constructed with cardfile(s) of applicable I/O cards (typically 8 point groups) and ancillary assemblies to meet site requirements. RTU configuration data is stored in non-volatile memories by use of a portable personal computer and/or commands from the Master Station.

The COMMANDER technology is highly reliable, field-proven, and in a second-generation design since its introduction in 1988. COMMANDER Cardfile RTUs are also upward compatible with the "open system" ENTERPRISE™ RTU/Station Computer family for long term evolutionary capabilities.

Typical Input/Output: 256DI/PI 128AI 128DO 64AO

__________________________________________

APPLICATIONS

Electric power distribution
Oil and Gas pipeline control
Emissions monitoring
Production control
Automated terminals and tank farms
Transportation signals

__________________________________________

FEATURES

Multi-port/protocol communications
SimpleBUSS™ expansion compatibility
CMOS circuitry for minimum power consumption and high noise immunity
Reprogrammable, non-volatile EEPROM retains configuration data during loss of power
Optional 1ms event recording ("SOE")
Industrial quality components and workmanship for long and reliable operation

__________________________________________

I/O CARD SELECTION

Look at picture, side view of a typical cardfile (I/O cards installed in a base/expansion motherboard) mounted in a EIA (19" rack) cabinet. Links to the types of I/O cards available for this unit can be found on the Catalog Introduction Page.

____________________________________________________________________________________________

SPECIFICATIONS (Base assembly only)

See I/O cards for respective specifications.

__________________________________________

Operating environment (electronics)

Standard -10 to +70°C temperature
0 to 95% relative humidity (non-condensing)

__________________________________________

Operating power

10-14VDC input power
20-28VDC input power (special order version)
Typical logic current drain 175mA
(2.1W, processor and I/O electronics)

__________________________________________

CPU

Processor type: 16bit MC68HC11F1
Clock rate: 4MHz
SRAM capacity: 8K or 12K bytes
EEPROM capacity 512 bytes
EPROM capacity: 8K, 16K, or 32K bytes

__________________________________________

Integral A/D convertor (for AI cards)

See related specifications for analog input cards

Conversion method: 12bit successive approximation (11 bits + sign bit)
Conversion rate: 18msec per point, nominal
Conversion accuracy: ±0.05% of span
Conversion resolution: 1 part in 4000

__________________________________________

Analog data mode options (firmware setting)

"Offset:" 1.0-5.0V 0-4000 raw counts
"Linear:" 0.0-5.0V 0-4000 raw counts
"Signed:" ±5.0V ±2000 raw counts
(2's compliment)

__________________________________________

Functional

Event ("SOE") buffer (for applicable status points) timetags accurate within 1ms, provided no more than 8 events occur during any 10ms interval. SOE points assigned on a group (I/O card) basis.
Firmware tailors database to meet project requirements
Standard DI cards can be used for count accumulation, DC to 40Hz pulse signals (based on 10ms debounce time). Per requirements, database configured for form "A," form "C," or quadrature ("up/down") counters.

__________________________________________

Communication Ports

Each of the four ports are independently configurable for channel (RS232, RS422, RS485)(DE9 female), data rate, and protocol:

Two Primary Ports are provided, primarily for Master communications, configurable to
150-9600bps (asynchronous), or
150-2400bps (synchronous)

An optional High-speed Port is available for 10 or 11bit asynchronous communications at 9,600115,200bps

A single Maintenance Port is provided for unit configuration and/or local MMI

__________________________________________

ADDITIONAL INFORMATION

Push the "BACK" button in your browser program after viewing the following pages, to return to this page:

Terminals & Connectors

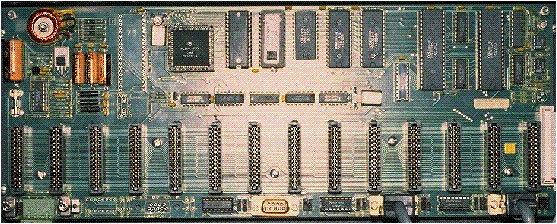

Look at picture of this assembly.

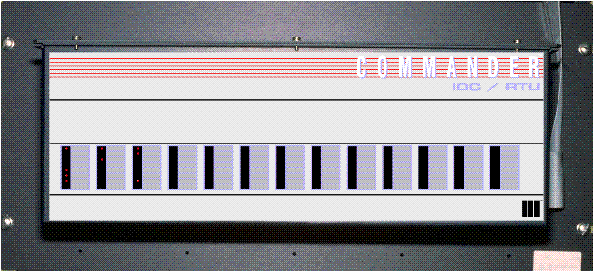

Look at picture of this assembly, with optional cardfile cover (I/O cards w/ LEDs).

__________________________________________

ORDERING INFORMATION

200098: COMMANDER (CARDFILE) BASE CARD

This assembly is provided in the following versions (XXX designation of part number).

-001: Unit card, standard version
-002: Unit card, includes the components for implementing the high speed serial port (comm port #3)
-003: Unit card, includes the components for supplying a precision voltage reference for the A/D Converter (protocol issues)
-004: Unit card, combination of assemblies in both -002 and 003 versions.

200098-001 $996

200098-002 $1155

200098-003 $1059

200098-004 $1219

Specify communications protocol and/or firmware version when ordering.

OPTIONAL LINE DRIVER CHIPS. These components replace the standard RS-232 line driver I.C. (socketed DIP).

200127-001, RS-485 $24

200127-002, RS-422 $24

__________________________________________

CARDFILE COVER

This optional cover is used with COMMANDER IOC/RTU cardfiles to further secure the I/O cards.

120019: CARDFILE COVER

This item is provided in the following versions (XXX designation of part number).

-001: Cover (blank)
-002: Cover, LED C/O
-003: Cover, 16PT DI C/O
-004: Cover, LED & 16PT DI C/O

120019-001 $42

120019-002 $63

120019-003 $66

120019-004 $78

Cover is aluminum, black annodize finish. Versions -002 and -004 have Lexan™ overlay (look at picture).

__________________________________________

CARDFILE BRACKET

Aluminum bracket that houses motherboard and it's associated I/O cards. Specify one of the following types of cardfile brackets for each 200098 and 200108 board assembly required.

120018-000 BKT, PANEL $92

120034-000 BKT, 19" RACK $98
