I/O CARD

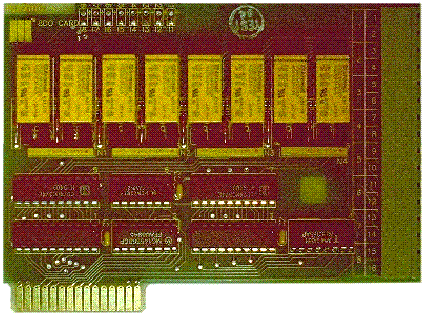

Look at picture of the I/O card.

This COMMANDER I/O function card supplies 8 digital output signals from a companion Base/Expansion cardfile assembly.

Eight dry (form "A") contacts are provided, arranged under software control as eight independent signals, or as a 4 X 4 matrix (for 16 unique signals). The output signals may be configured for continuous, momentary, and/or pulse width modes of operation.

__________________________________________

SPECIFICATIONS

__________________________________________

Functional

• Outputs per card: 8 (isolated)
• Commons per card: 8 (isolated)
• Output type: isolated form "A" contact
• Contact ratings: 0.6A @ 120VAC or 2.0A @ 30VDC
• Output organization:
  • Discrete (standard) - outputs operate independently, to provide momentary, continuous, or pulsed-width signals, per firmware control
  • Matrix (option) - outputs organized into a 4X4 array to control 16 interposing relays or devices (only one device momentarily signalled at a time with this option)
• Terminal types: Removable terminal or IDC (ribbon cable) header as specified

__________________________________________

Operating power

• 10-14VDC input power, from Base assembly
• Typical logic current drain <5mA
• Typical relay draws 33mA each when engaged
• Optional LED indicators draws 3mA each when turned on

__________________________________________

Transient protection

• Meets or exceeds IEEE C37.90A-1987
  surge withstanding specification

__________________________________________

Operating environment (electronics)

• Standard -10 to +70°C temperature
• 0 to 95% relative humidity (non-condensing)

__________________________________________

ADDITIONAL INFORMATION

Push the "BACK" button in your browser program after viewing the following pages, to return to this page:

Terminals & Connectors

Look at picture of the I/O card.

__________________________________________

ORDERING INFORMATION

200102: I/O CARD, 8 POINT DO

This assembly is provided in the following versions (XXX designation of part number).

• -000: I/O card, pull-apart termination
• -001: I/O card, pull-apart termination, LED indicators
• -100: I/O card, IDC-type termination
• -101: I/O card, IDC-type termination, LED indicators

200102-000 $257

200102-001 $285

200102-100 $249

200102-101 $277

MATING TERMINAL. Pull-apart Terminal Strip, for versions 000 and 001.
200128-016 $36
