DC-DC CONVERTERS

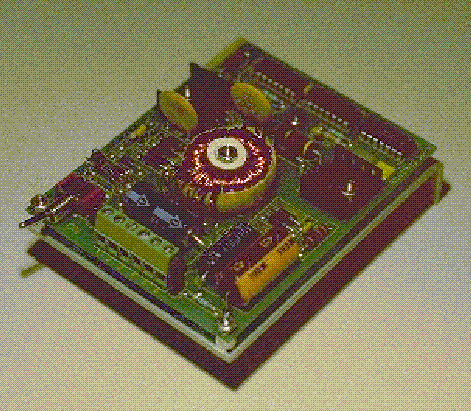

Look at picture.

This assembly inputs a DC voltage, typically from station batteries, and provides two independent (isolated) power outputs of 24VDC and 12VDC. Three models are available for input voltages of 125VDC, 48VDC, and 24VDC respectively.

__________________________________________

APPLICATIONS

• Powering control and communication equipment from existing station battery
• PLC, IOC, RTU, SLC uninterruptible power
• Field instrument power

__________________________________________

FEATURES

• Compact size for installation efficiencies
• Industrial quality components and workmanship for long and reliable operation

__________________________________________

SPECIFICATIONS

__________________________________________

Operating environment (electronics)

• Standard -10 to +70°C temperature
• 0 to 95% relative humidity (non-condensing)

__________________________________________

Input power

• -001 version: 24VDC±10%
• -002 version: 48VDC±10%
• -003 version: 125VDC±10%

__________________________________________

Output power

• Main output: 12VDC, 2A (24VA)
• Aux output: 24VDC, 1A (24VA)
• Outputs are unregulated; therefore, output power % deviation equivalent to input power % deviation

__________________________________________

Transient protection

• Meets or exceeds IEEE C37.90A-1987
  surge withstanding specification

__________________________________________

ADDITIONAL INFORMATION

Push the "BACK" button in your browser program after viewing the following pages, to return to this page:

Look at picture.

__________________________________________

ORDERING INFORMATION

200115: DC-DC CONVERTER ASSEMBLY

This assembly is provided in the following versions (XXX designation of part number).

• -001: 24VDC input power
• -002: 48VDC input power
• -003: 125VDC input power

200115-001 $332

200115-002 $332

200115-003 $332
