ENTERPRISE RTU

The large ENTERPRISE™ RTU provides advanced telemetry and control functions for SCADA (Supervisory, Control, and Data Acquisition) systems. This unit is an evolved open systems version of the COMMANDER™ Cardfile RTU, featuring OSI compliant interfaces, non-proprietary hardware, and high level language (Ladder-Logic, C, Pascal, Fortran, etc.) programmability.

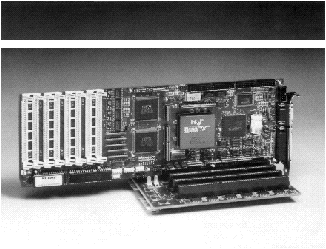

All ENTERPRISE Station Computers are constructed with industrialized versions of the IBM PC and a variety of independent software modules. Aside from the principle RTU routines, other baseline modules can be integrated to enhance operations, including closed-loop controls, real-time calculations, graphics-based MMI, client-server interfaces, and monitoring of intelligent station instruments.

An industry standard architecture, coupled with ADC's libraries of advanced SCADA tools, and unquestionably the largest body of 3rd party hardware and software solutions, provides the optimal environment from a development, computing enterprise, ongoing support, and long term evolutionary perspective.

Input/Output: 256DI 128AI 64PI 128DO 64AO (per SimpleBUSS ISA adapter)

__________________________________________

APPLICATIONS

• Electric power transmission
• Oil and Gas pipeline control
• Emissions monitoring
• Process automation and control
• Network (telemetry) data server

__________________________________________

FEATURES

• Open (non-proprietary) interfaces
• Multi-port communications
• Optional network interface supports Internet protocols (ie NFS, FTP, etc.) for
  enterprise-wide connectivity
• SimpleBUSS™ expansion compatibility
• CMOS circuitry for minimum power consumption and high noise immunity
• Optional 1ms event recording ("SOE")
• Remote unit re-configuration and diagnostics
• Industrial quality components and workmanship for long and reliable operation

____________________________________________________________________________________________

SPECIFICATIONS

__________________________________________

Operating environment (electronics)

• Standard 0 to +60°C temperature
• 0 to 95% relative humidity (non-condensing)

__________________________________________

Operating power

• -12, +12, +5VDC input power required
  (AC/DC-DC converters/chargers available)
• Typical logic current drain 500mA

__________________________________________

Analog inputs and A/D conversion

• Conversion rate: 18msec per point, nominal
• Conversion accuracy: ±0.15% of span
• Conversion resolution: 1 part in 4000
• Common mode rejection: >80dB @ 60Hz,
  60dB @ DC
• Common mode input range: ±200V peak
• Firmware span calibration by point, stored in IOC's non-volatile EEPROM
• Accepts ±1mA, ±5V (bipolar) signals or 020mA, 0-5V (unipolar) signals

__________________________________________

Digital and/or Pulse inputs (isolated)

• Signal must sink or source 5-10mA (from 12-24VDC/VAC source) depending upon DI card
• SOE buffer (for applicable status points) timetags accurate within 1ms
• Accumulates DC to 40Hz pulse signals (std DI card) or up to 10KHz (hi-speed PI card)
• Optical coupler input with 5000V isolation

__________________________________________

Transient protection

• Meets or exceeds IEEE C37.90A-1987
  surge withstanding specification

__________________________________________

Primary control outputs

• Isolated Form A contact
• Rated for 0.6A at 120VAC or 2.0A at 30VDC
• Optional interposing relays per requirements

__________________________________________

Analog outputs (D/A conversion)

• Conversion accuracy: ±0.15% of span
• Conversion resolution: 1 part in 4000
• True constant current output (0-20mA)
• Max loop resistance: 700 for 24V supply
• Normally derives operating power from separate instrument supply
  (requires 20mA per output)

__________________________________________

Communication Ports

Each port independently configurable for channel (RS232, RS422, RS485), data rate, and protocol (async/sync)

__________________________________________

ORDERING INFORMATION

Contact representative to discuss unit requirements and pricing.
