COMMANDER SBRTU

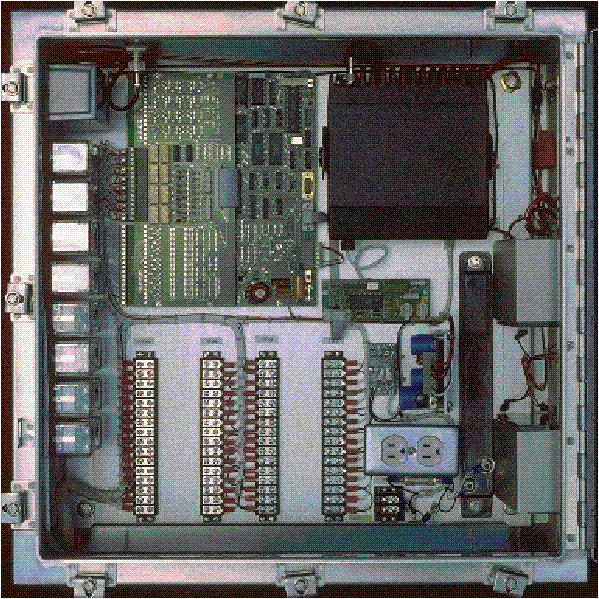

Look at picture of a typical (complete) unit.

The small-sized COMMANDER™ Single-board RTU provides advanced telemetry and control functions for SCADA (Supervisory, Control, and Data Acquisition) systems.

Asynchronous Master communications are supported through an RS-232 interface. Eight of the sixteen status inputs may be optionally configured as low speed pulse inputs. RTUs are quickly configured by storing values in non-volatile memories by use of a hand-held test set or a portable computer. The unit's firmware is compatible with the larger (cardfile) Commander RTU for long term evolutionary options.

Input/Output: 16DI 8AI 8DO 1AO

Input/Output: 32DI 16AI 16DO 1AO (with expansion card)

__________________________________________

APPLICATIONS

• Electric power distribution
• Oil and Gas pipeline control
• W / WW lift station control
• Automated terminals and tank farms
• Transportation signals

__________________________________________

FEATURES

• Multiple protocol support
• Firmware upward compatible
• CMOS circuitry for minimum power consumption and high noise immunity
• Reprogrammable, non-volatile EEPROM retains configuration data during loss of power
• Industrial quality components and workmanship for long and reliable operation

__________________________________________________________________________________________________________________

SPECIFICATIONS

__________________________________________

Operating environment (electronics)

• Standard -10 to +70°C temperature
• 0 to 95% relative humidity (non-condensing)

__________________________________________

Operating power

• 10-14VDC input power
  (AC/DC-DC converters/chargers available)
• Typical logic current drain 125mA
  (1.5W, processor and I/O electronics)
• Typical ON indicator draws 5mA
• Typical ON control relay draws 33mA

__________________________________________

Digital inputs ("status"), common mode

• Signal must sink 5mA from 12VDC source
• Signal delay: 25msec nominal

__________________________________________

Analog inputs (A/D conversion)

• Conversion rate: 20msec per point, nominal
• Conversion accuracy: ±0.10% of span
• Conversion resolution: 1 part in 4000
• Common mode rejection: >80dB @ 60Hz,
  60dB @ DC
• Common mode input range: ±36V
• Adjustment: ±3.0% of span
• Accepts ±1mA, ±5V (bipolar) signals or 420mA, 0-5V (unipolar) signals

__________________________________________

Analog data mode options (EEPROM setting)

• "Offset:" 0.5-5.0V 0-4000 raw counts
• "Linear:" 0.0-5.0V 0-4000 raw counts
• "Signed:" ±5.0V ±2000 raw counts (2's compliment)

__________________________________________

Optional (soft) pulse inputs

• Input frequency: DC to 13Hz

__________________________________________

Transient protection

• Meets or exceeds IEEE C37.90A-1987
  surge withstanding specification

__________________________________________

Primary control outputs

• Isolated Form A contact
• Rated for 0.6A at 120VAC or 2.0A at 30VDC
• Optional interposing relays per requirements

__________________________________________

Optional analog output (D/A conversion)

• Conversion accuracy: ±0.10% of span
• Conversion resolution: 1 part in 1000
• True constant current output (4-20mA)
• Max loop resistance: 1100 for 24V supply
• Normally derives operating power from separate instrument supply (requires 4-20mA)

__________________________________________

Communication Port

• Interface: RS232 (DE9 female). Adaptable to RS422 or RS485 with optional line driver chip.
• Word length: 10 or 11-bit, asynchronous
• Data rates: 600-4,800bps

__________________________________________

ADDITIONAL INFORMATION

Push the "BACK" button in your browser program after viewing the following pages, to return to this page:

Terminals & Connectors

Look at picture of a typical (complete) unit.

__________________________________________

ORDERING INFORMATION

200054: COMMANDER RTU CARD

This assembly is provided in the following versions (XXX designation of part number).

• -001: Unit card, standard version
• -002: Option - additional parts for optional LEDs (must be specified when ordering)
• -003: Option - provide IDC connectors instead of pull-apart connectors, for use with external Termination Assembly
• -004: Unit card -001 with both 002 and 003 options
• -005: Option - additional parts for Analog Output (setpoint control)

200054-001 $1590

200054-002 $52

200054-003 $-132

200054-004 $1510

200054-005 $86

Specify communications protocol and/or firmware version when ordering. Hand-held tester required for setting unit options in EEPROM.

OPTIONAL LINE DRIVER CHIPS. These components replace the standard RS-232 line driver I.C. (socketed DIP).

200127-001 (RS-485) $24

200127-002 (RS-422) $24
